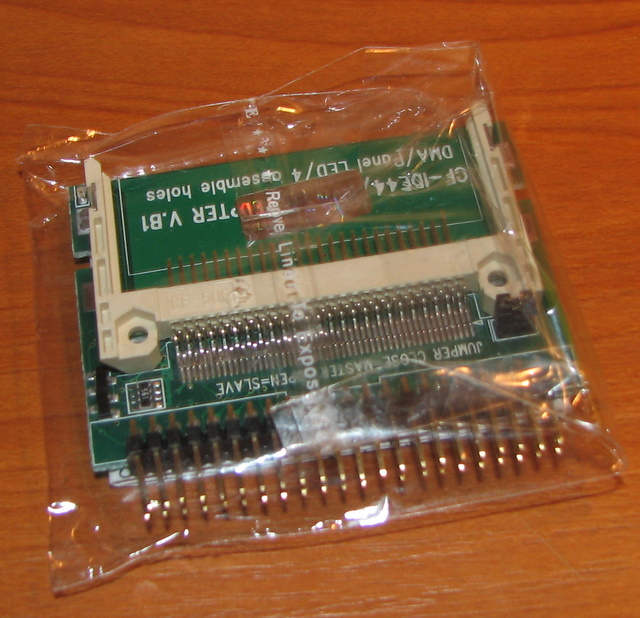

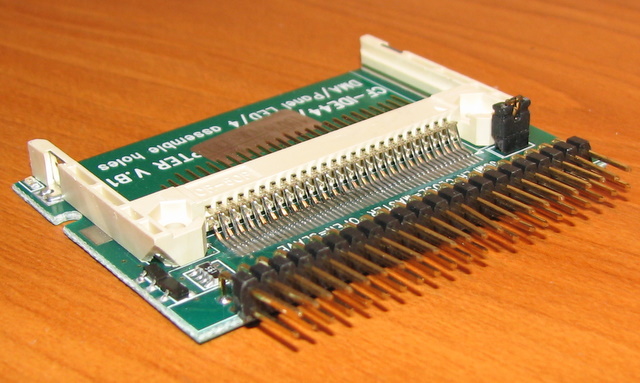

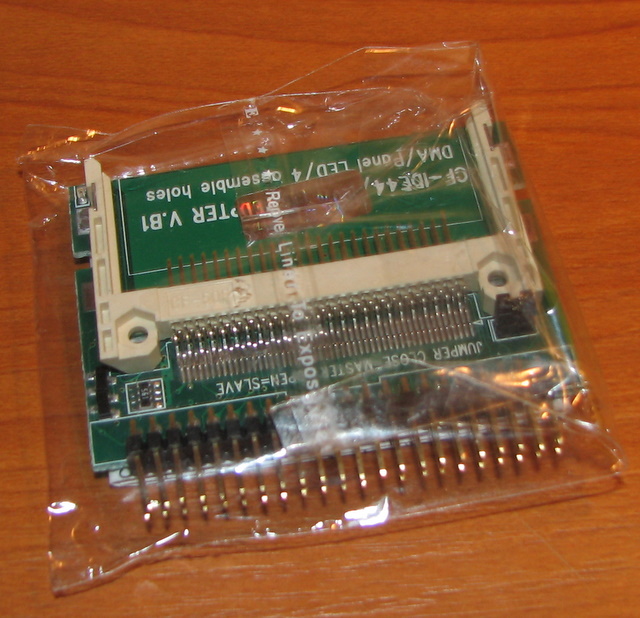

Переходник Compact Flash CF в ноутбуный IDE (#25065)

Продается переходник из CF в IDE разъем винчестера.

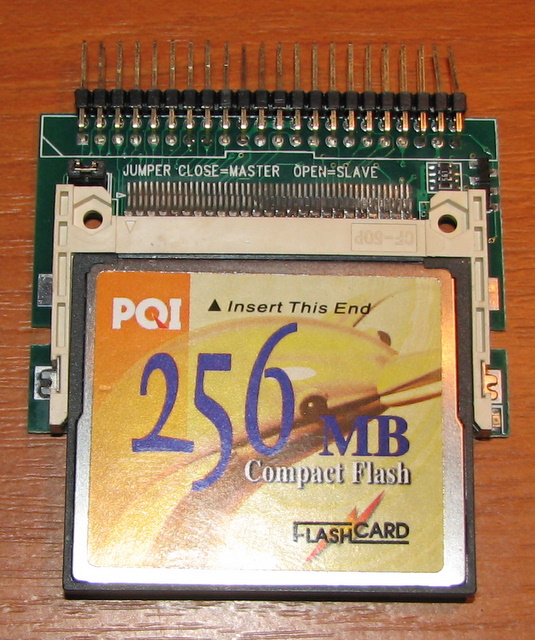

Можно перемычкой выбирать Master или Slave

Описание:

Compact-Flash is a small, removable mass storage electronic SSD (solid-state-disk) with IDE interface. Using this adapter you can easily read CF card on IDE port. If your CF card can’t be connected directly, use this adaptor to connect your CF card to devices with X86 or RISC core which usually has an IDE interface .Such as X86 Core computers… Then you can read the info from your CF card digital camera etc. This adaptor and CF card can also used as a substitute for usual HDD( hard-disk driver) to store embedded OS (operating system) such as LINUX or WINCE in industry PC avoiding the damage caused by frequent turning on/off the power.

Specification:

* Compatible with: CF spec Ver2.0 and IDE/ATA-33 spec
* Standard IDE interface: true-IDE mode, support DMA-33 transfer mode.
* Support CF-I, CF-II and IBM micro-driver with CF-II interface.
* DE 40PIN/2.54mm; 44 PIN/2.0mm female or male connector: plug card into IDE slot directly or connect to motherboard with a cable.
* Flexible CF socket mounting: different CF socket can be mounted, single/double side selectable for double-side type.
* Main/ subordinary card cable select: CF card on each side can be defined as Main or subordinary
* Use CF as DOM: Auto select from IDE40 pin-20; FDD power connector or from IDE when using IDE44.

Features:

* IDE pins: 44
* Male/Female
* CF qty: single
* Pins of cable selection qty: 2
* VCC from IDE 20pins: No
* DMA supportable: Yes
* Iron rack: No
* LED Light: Active


Цена: 100 РУБ
